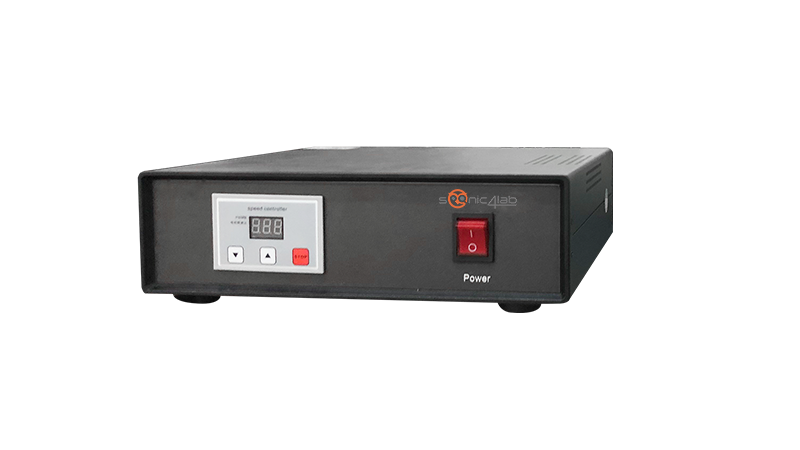

Generator E Ultrasonic Electric Box

Product Description

Ultrasonic Generators, using the company’s first transducer drive power technology: “frequency adaptive”. The new technology is perfectly adapted to the wide range of resonant frequencies of the transducer itself and variations in different loads.
ARM+DSP multi-core system makes the equipment more efficient and stable.
4.3-inch true color display, intuitive and clear Windows graphical user interface, making operation easier and more convenient.
The power supply automatically matches different probes without the need for cumbersome inductive adjustment or shifting.
This product can be applied to ultrasonic sonochemical systems.

• 100 sets of experimental parameters are available for storage, and menu-driven documentation is more intuitive
• With actual amplitude display, constant amplitude output, constant idling in air
• Sustainable operation for 24 hours
• 4.3-inch true color display, intuitive and clear Windows graphical user interface
• ARM+DSP multi-core system for more reliable and stable processing

Product Specifications

• Power supply: 220V/50Hz
• Working frequency: 100 Watt
• Maximum power: 40khz ± 10%
• Total time: 00:00:01-99:59:59
• Output time: 00.1-10.0S
• Power regulation: 1-100%
• Gap time: 00.1-10.0 S
• Protection function: over-current protection, drive power short circuit, over current protection, transducer mismatch, damage and other perfect protection functions

Note

• This product is a high-voltage equipment. If you do not have any professional knowledge, please do not open the chassis maintenance equipment.
• Do not place the generator near equipment that is too humid or flammable or explosive.
• The working voltage of the high-voltage end of the ultrasonic transducer is about 600-1200V. It is strictly forbidden to contact any part of the high-voltage end when the wave is transmitted, otherwise there is danger of electric shock and burn! The power output of the electrical box and the connecting line of the ultrasonic transducer cannot be reversed, otherwise the chassis will be powered by high voltage.
• Before connecting the power supply, first check if the switch is OFF (0). To prevent electric shock, use a grounded power source for the vibration source.
• During the working process, if the working frequency is lower and lower, the temperature of the transducer is too high, which may be a fan problem on the chassis. Please check whether the fan on the rack is damaged. It is also possible that the mold is cracked.
• During the work, if the frequency reaches the highest set value and a drip warning sound is issued, there is a problem with the transducer, horn or mold, which needs to be checked or replaced.
• When the generator alarm indicator (red light) is on, turn off the power in time, check if the connection between the transducer and the generator is disconnected, and the transducer is damaged.
• Fans, transformers, etc. in the main unit need to use a brush to remove dust on the surface every 6 months. The environment is dirty every 3 months to remove dust on the surface.
