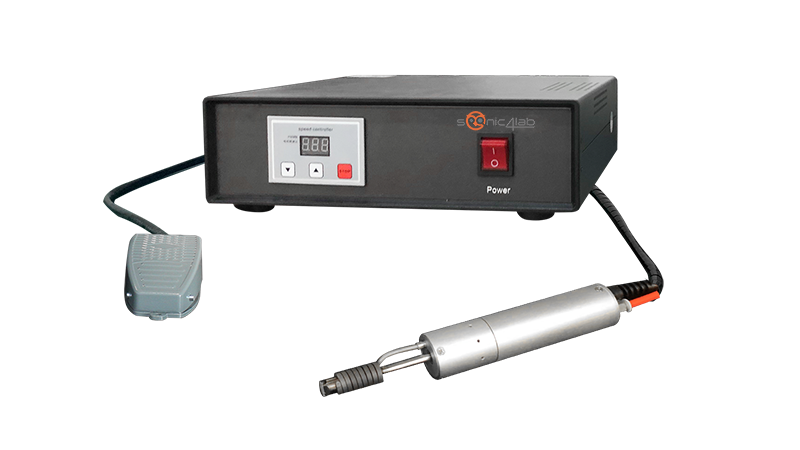

USE-40E Ultrasonic Soldering System

Product Description

Ultrasonic Soldering System makes it possible to solder glass, ceramics and low-solderability metals, such as Al, Mo, stainless steel etc. This is an ultrasonic soldering device that produces high quality soldered joints. The soldering iron consists of a high performance sheath heater and transducer, supplying heat and ultrasonic oscillations to the tip. Using solder alloy, you can easily solder directly to metals, semiconductors, glass and ceramic substrates and other low solderability materials, such as Al, Mo, or stainless steel.

This superior bonding technique provides an excellent airtight, weatherproof, humidity resistant seal as well as joints with good electroconductivity between interconnected layers.

Advantages

• Soldering to glass or ceramics
• Soldering to low solderability metals
• Lead bonding for superconductive materials
• Lead bonding for solar cells or modules
• Lead bonding on the surface of display

Features

• Direct soldering to glass, ceramics, low solderability metals
• Adjustable ultrasonic-power output.
• Heater temperature is possible to adjust between 200-500℃ at intervals of 1℃.
• Soldering condition is possible to reproduce by display ultrasonic-frequency, ultrasonic-power and heater temperature.
• Compact handy type, portable hand and spacesaving.
• Easy to operate.
• Variable power supply with AC100V/240V switch.
• Stable ultrasonic frequency with constant amplitude control and new feedback system for automatic-adjustment of resonance frequency
