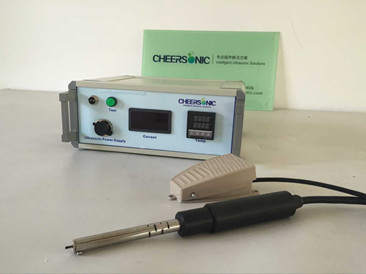

Ultrasonic Soldering Tin Machine

The Ultrasonic Soldering Tin Machine developed by U-Bonder can weld devices of general materials by ultrasonic action, and can be perfectly welded for ceramics, glass, solar cells, etc., which are difficult to solder.

Ultrasonic Soldering Tin Machine is a new type of ultrasonic welding tool. It is firmly combined with the surface of solder and solder by ultrasonic vibration. It is widely used in glass, ceramic, silicon crystal devices (LED, liquid crystal, etc.), precision welding of superconducting materials, electronic product packaging, etc. Welding between metal and non-metal. It does not require the use of flux (vibration of the ultrasonic tool head and remove all dirt or oxide layer on the surface). It has high stability, fast temperature recovery, no flux, no harmful gas, and effective prevention of bubbles and pinholes. And other advantages, thereby improving production efficiency, product quality and reliability.

Ultrasonic soldering machine developed by U-Bonder Features:

1. Ultrasonic removal of oil and oxide on the surface of the soldered base material to ensure perfect cleanliness of the metal surface;

2. Increase the welding area and reduce the surface tension of the material to be welded;

3, no need for any flux, no harmful gases, protect the health of the welding workers;

4, no-clean after welding, to prevent the use of flux soldering, electrical insulation performance degradation and short circuit and other issues;

5. There is no bubble or pinhole inside the welding zone, remove the false welding and false welding, improve the welding quality, ensure the yield rate, reduce the welding time and improve the working efficiency;

6. The welding area is flat and beautiful, the welding point strength is high, it is not easy to aging, there is no internal and external compressive stress, and the reoxidation of the surface during welding is prevented;

7, can achieve low temperature welding of two different materials (between different metals or non-metals, such as copper, aluminum, stainless steel, glass, ceramics, silicon crystals, etc.);

8, high stability, fast temperature, energy-saving function, can save welding materials;

9. Excellent sealing and brazing properties in the weld zone.
